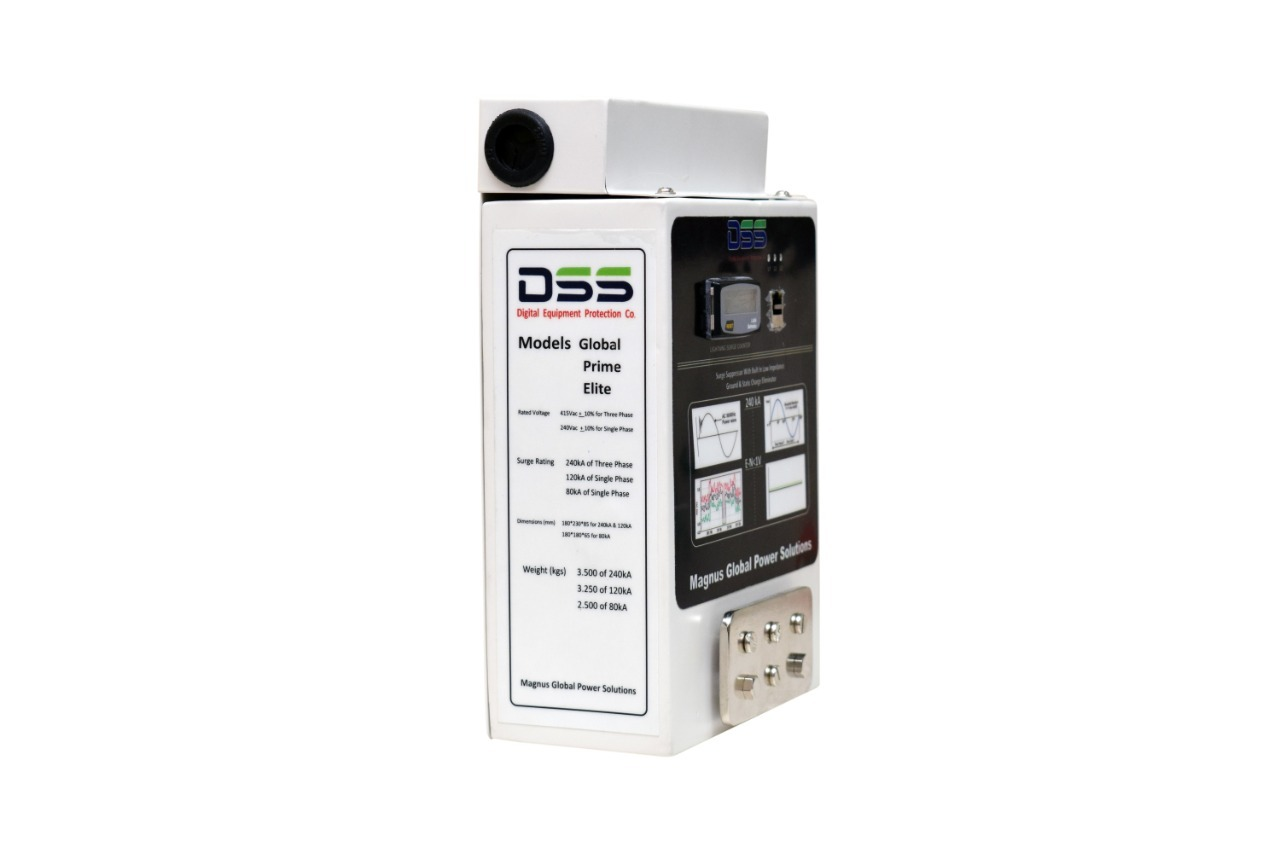

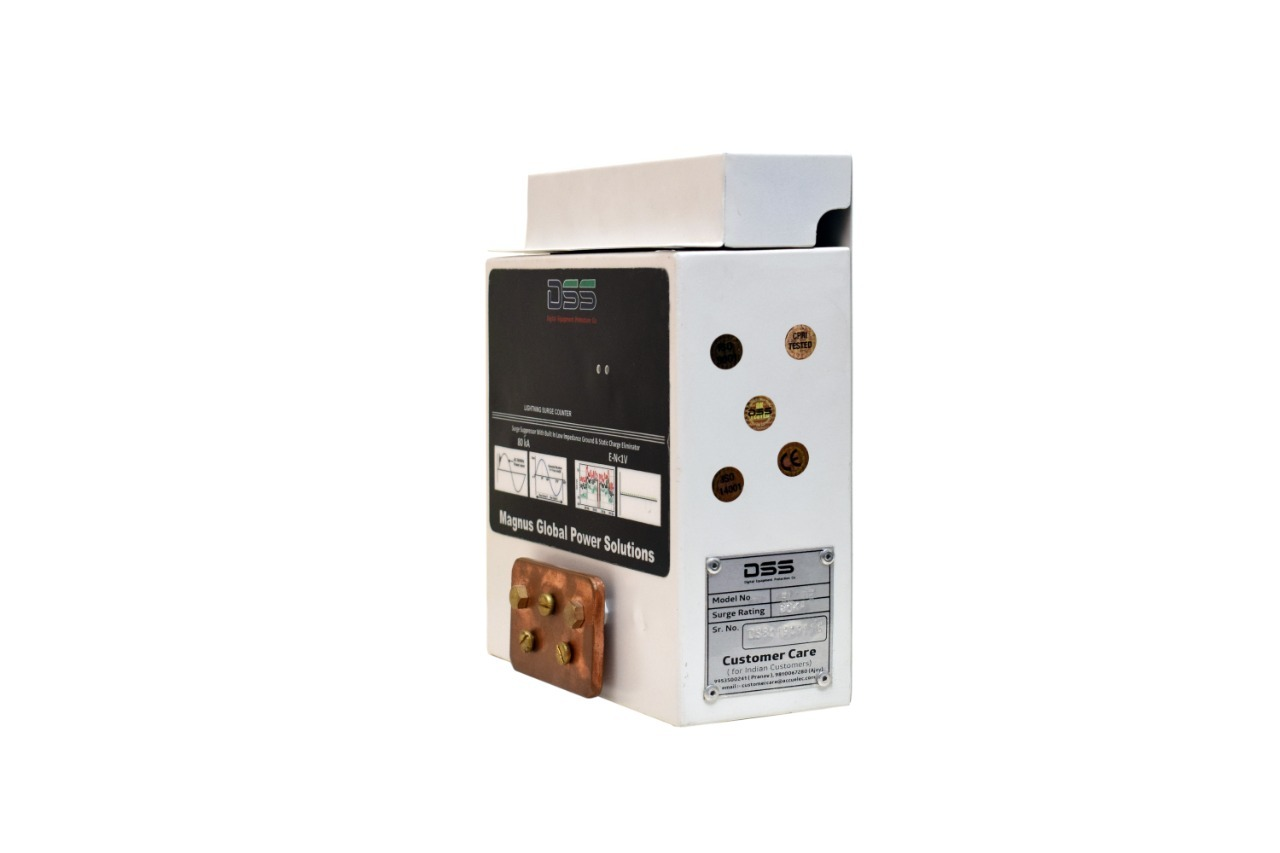

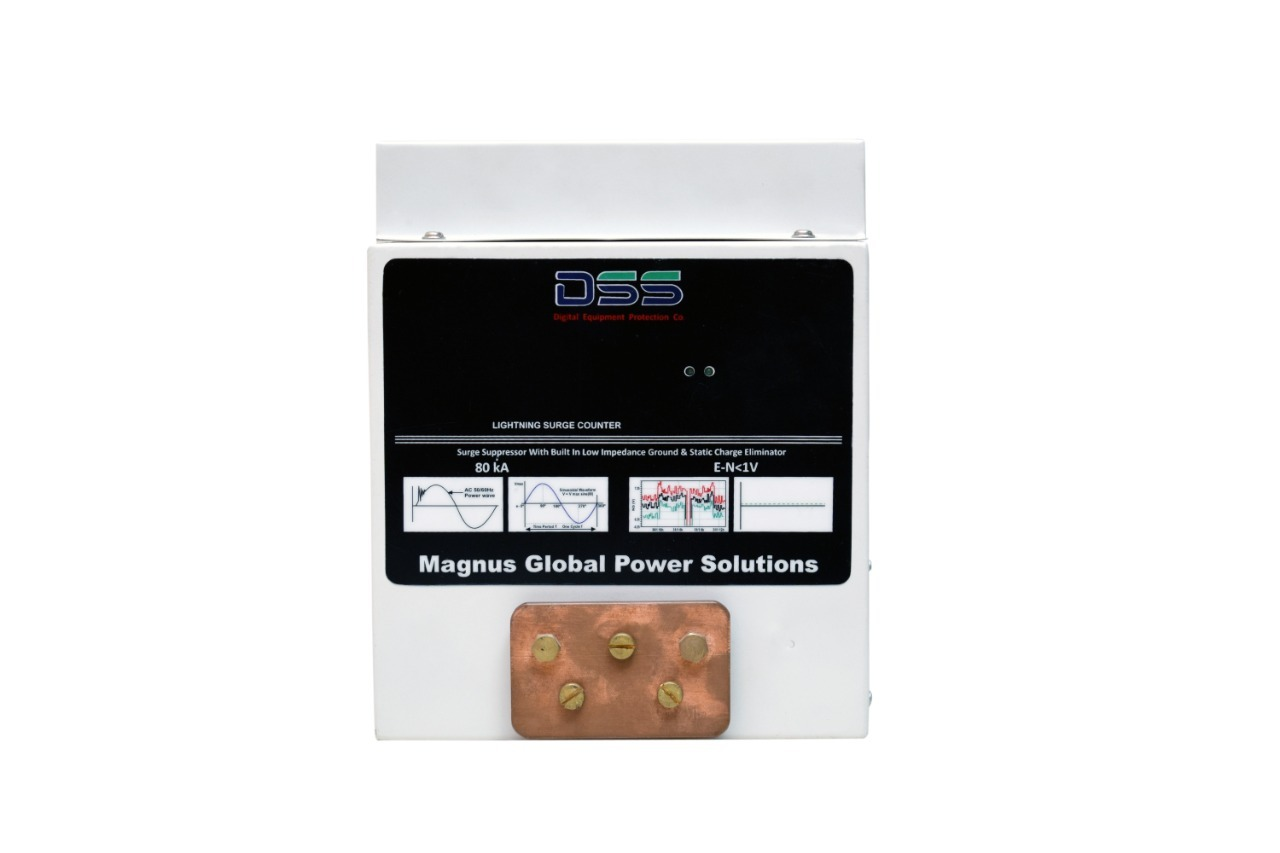

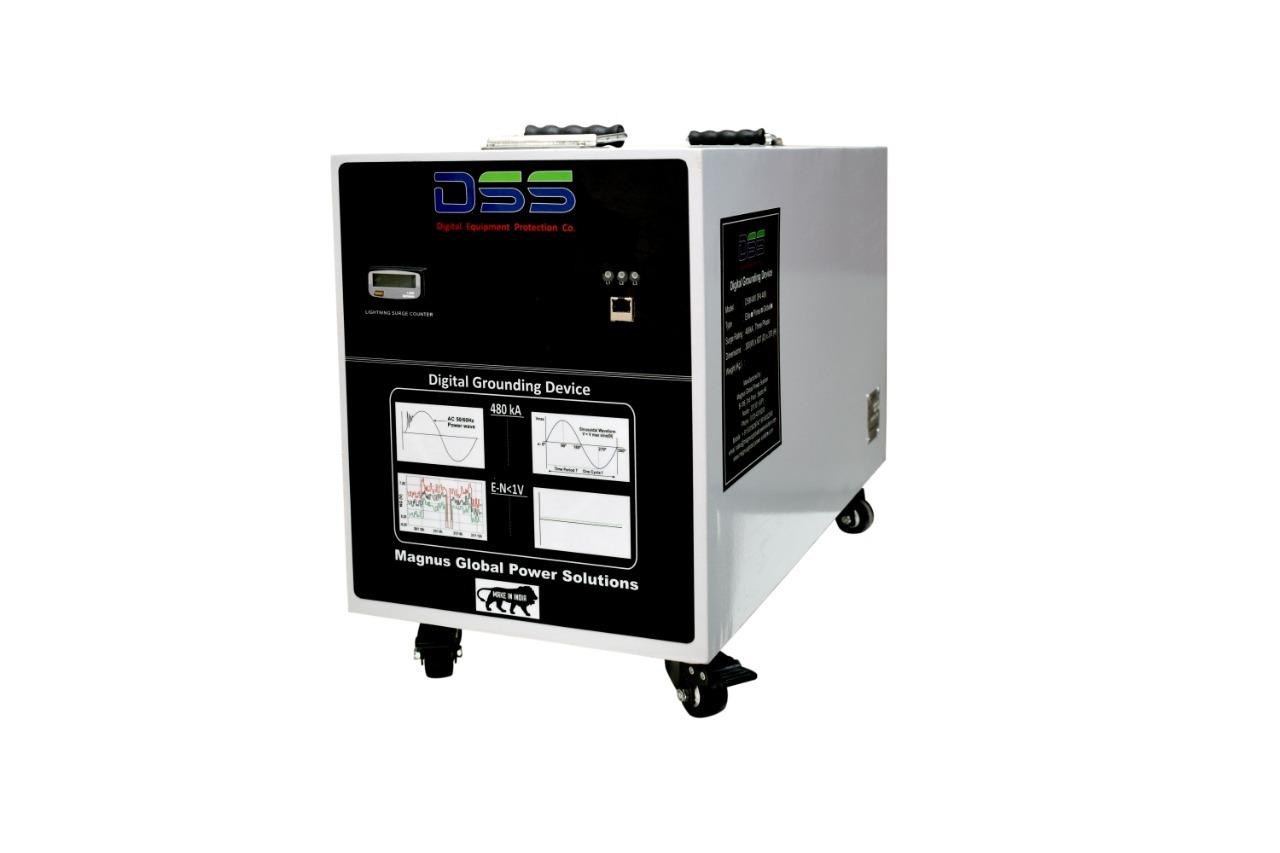

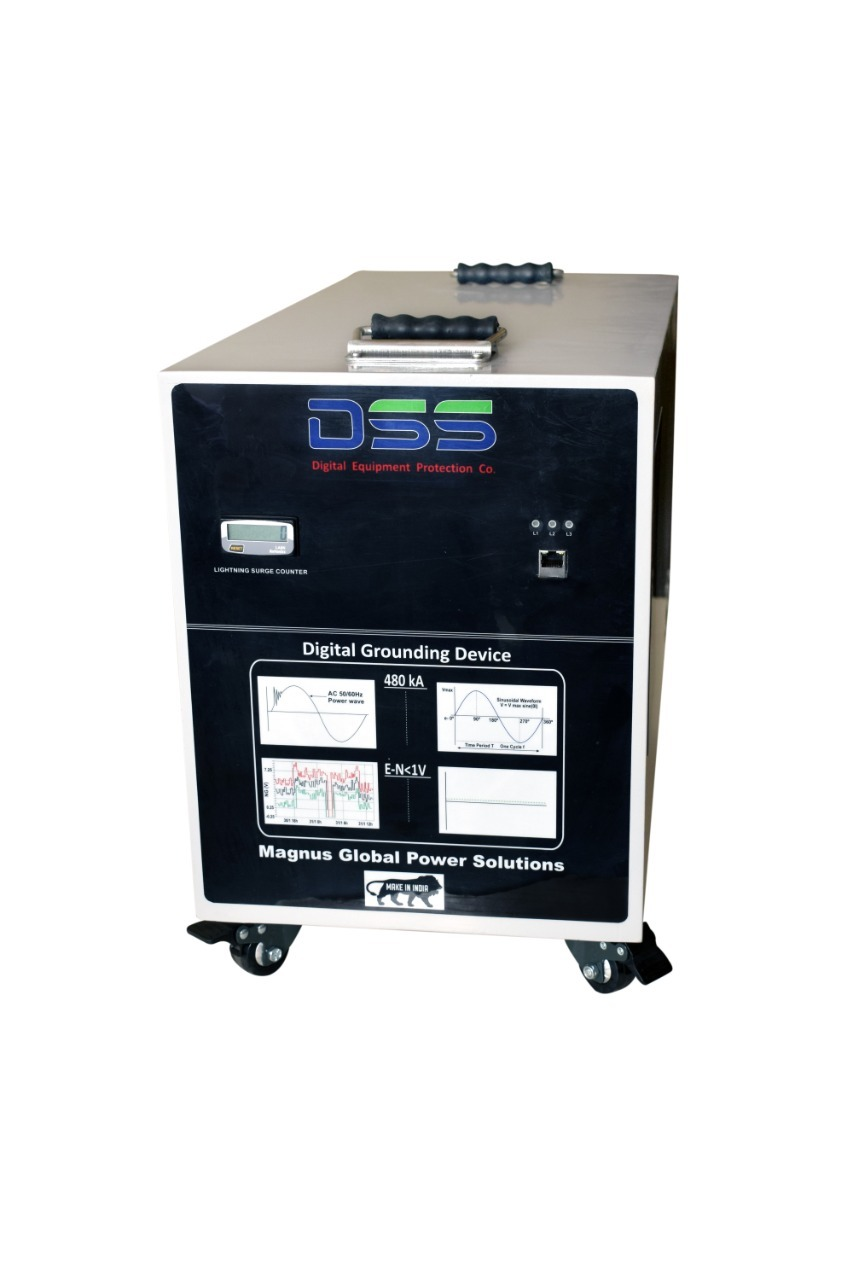

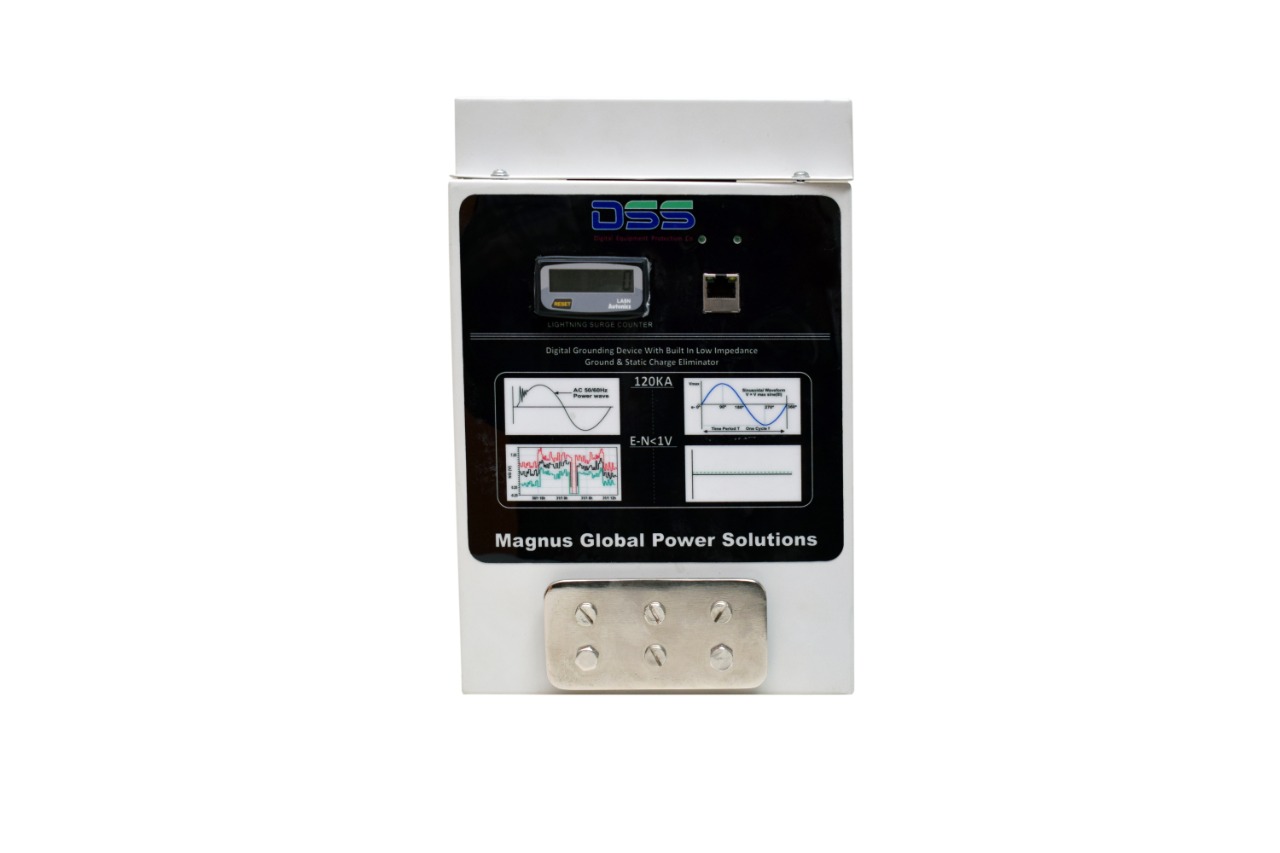

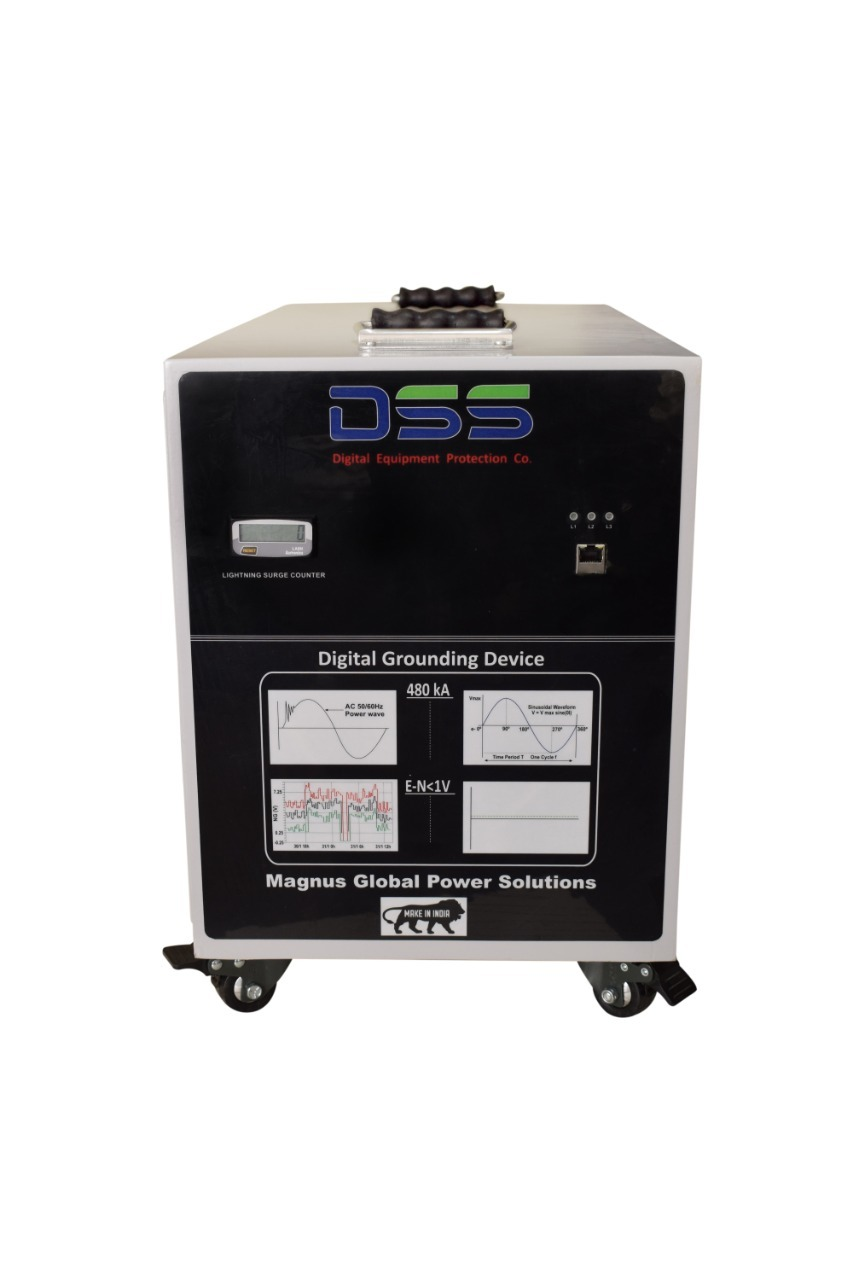

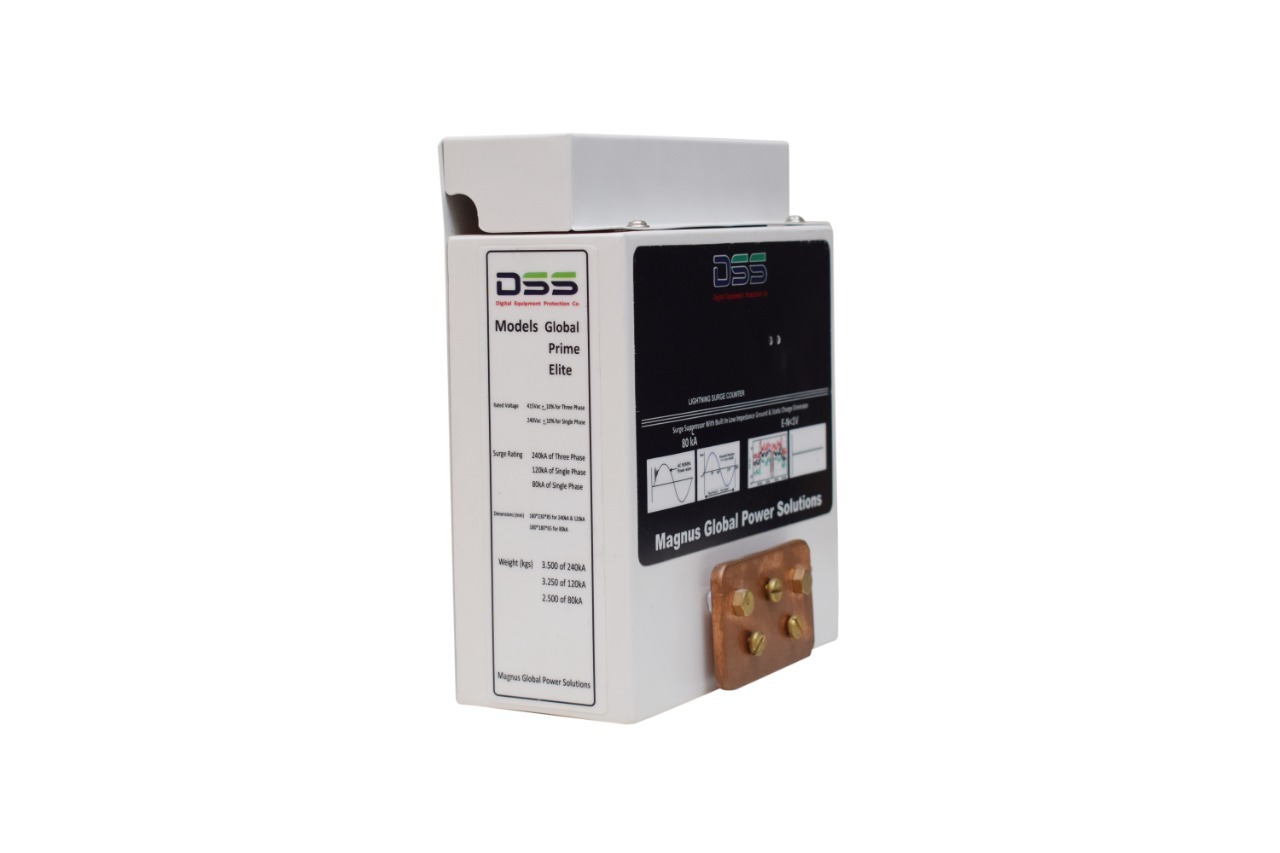

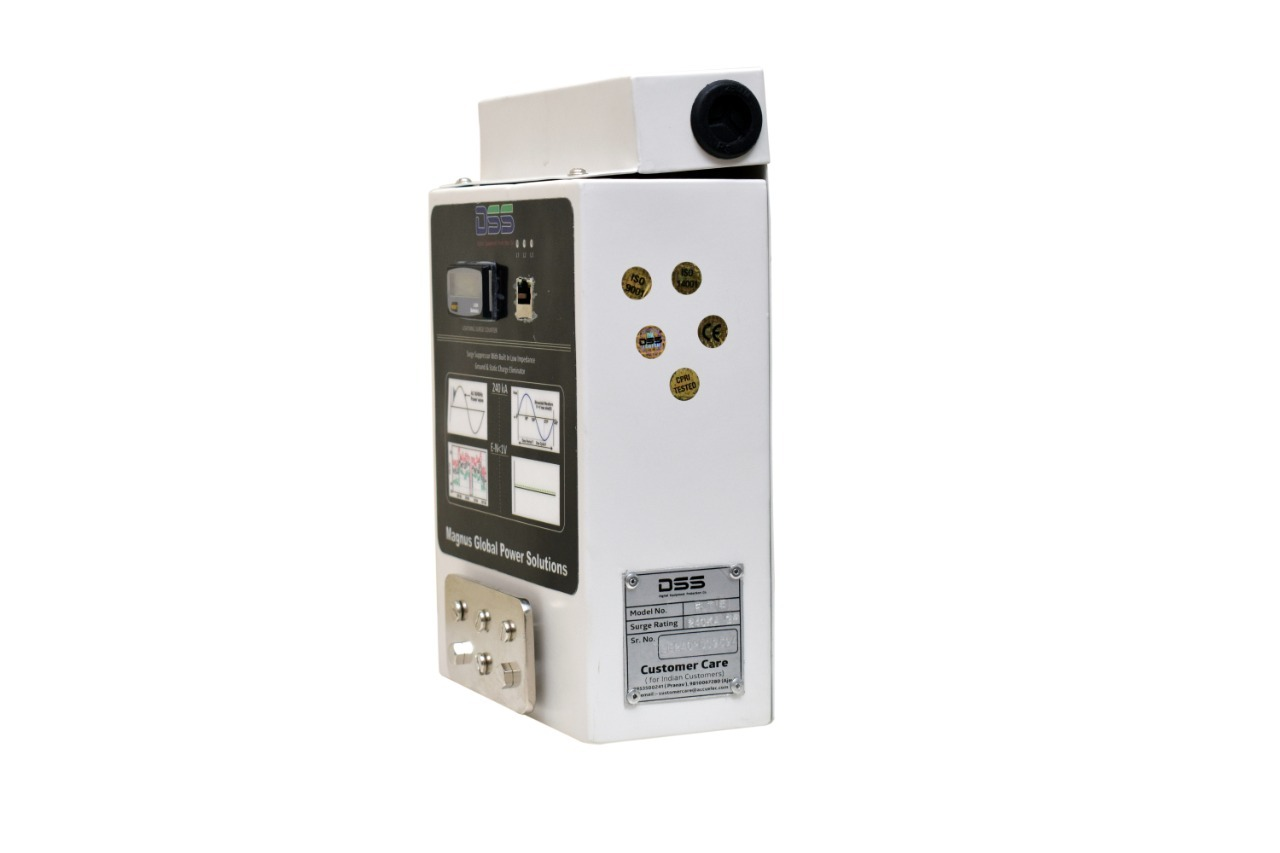

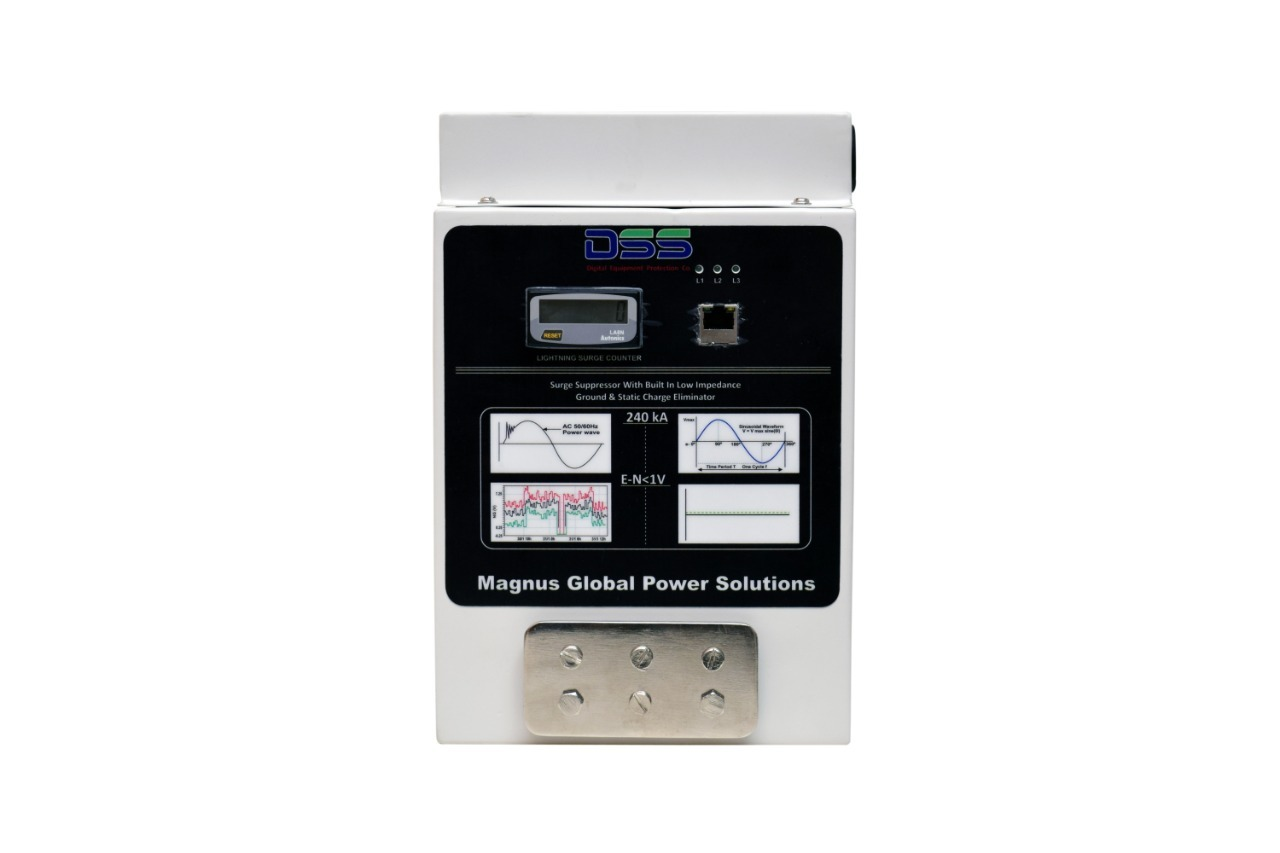

Digital Grounding Device with built in Low impedance Ground & Surge Protection provides perfect Low impedance Ground to the sensitive equipment, provides equipotential bonding platform to eliminate any possibility of step voltage damage & provides total 100% protection from Lightning / Reverse Lightning Surge & Transients, Eliminates Static charge, Noises and all other abnormal electrical characteristics, which are likely to enter in to valuable equipment/ system from power and other service lines. It ensures a clear bonding potential. (earth to Neutral voltage) of less than 1.0 Volt & grounding network Impedance less than 01 Ohm and has capacity to smoothly handle the higher amount of Leakage Current. It has a digital 6 digit lightening surge counter, self-health visual status indicator and self-protective, self-operated, fully autonomous aerosol based fire extinguisher, all as standard feature in a Pre-wired pulverulent body painted metal enclosure (EMI/EMC- MIL STD 461 F, Shock and vibration MIL STD 810 F and MIL STD 167, Environmental specifications JSS 55555. Models with facility of monitoring various parameters ON LINE are also available. It is Conforming to IEC, CE Marked; CPRI tested and ISO 9000 & ISO 14001-2015 certified product (please refer the enclosed brochure & the Price List).
Basically there are two different panels inside this box in one panel there are some LC circuits along with Zener Diodes which helps to drop down the current and then second then remaining current is taken by second panel which comprises Electrodes along with Gel and some Nichrome wires which takes this heat and extract it into the surrounding through Cu Expansion plate shown at front wall of DSS Device.
DSS gives you GN voltage what sensitive device demands along with some additional features, it is patented technology and proven in several naming and reputed industries.
We recommend there must be a connection with earth in order to maintain redundancy and long age of DSS Device but again we are saying it should be simple connection , one should not maintain it in terms of any parameters.
